With the Plots Artifacts API, your Latch workflow can generate a new notebook from a standard Plot Template in your workspace and automatically populate the notebook’s input widgets from parameters outputted from the workflow.

Example: A DESeq2 workflow execution outputs a Plots Artifact on Latch Data with all the notebook parameters filled out. This eliminates the need for manual parameter entry by scientists, thereby minimizing rooms for errors.

​
Behavior

  • Using the API in workflow code creates a Plot Artifact in Latch Data. We provide a detailed usage example below.
  • Double-clicking the Artifact opens a new Plot Notebook based on the template defined in the workflow code.
  • Each Plot Notebook runs on a dedicated machine:
    • The machine is started the first time the Artifact is opened.
    • Subsequent openings of the Artifact reuse the same machine to avoid extra costs.

​
Usage

​
Step 1: Define the PlotsArtifact dataclass:

Example
from latch.types.plots import PlotsArtifactBindings, PlotsArtifactTemplate, PlotsArtifact, Widget

artifact = PlotsArtifact(
    bindings=PlotsArtifactBindings(
        plot_templates=[
            PlotsArtifactTemplate(
                template_id="1234", ## The Plot template ID
                widgets=[
                    Widget(
                        transform_id="1234", ## The Python transform ID
                        key="1", ## The `key` of the widget that we want to populate
                        value="Value" ## Value to populate that widget with
                    )
                ],
            )
        ]
    )
)
To fill out the PlotsArtifactTemplate dataclass, we need to define four things:
  1. The plot template ID
  2. The ID of the Python transform cell that contains the widget
  3. The unique ID of the widget (as one Python transform cell may contain many widgets)
  4. The value we want to populate the widget with

​
How to find:

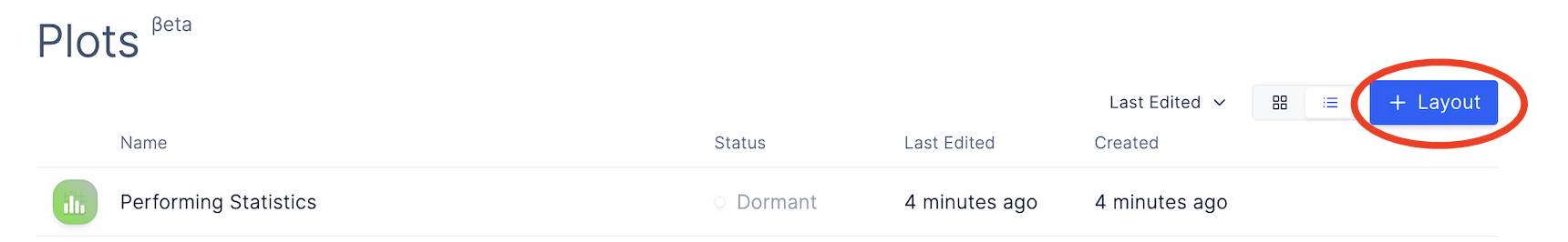

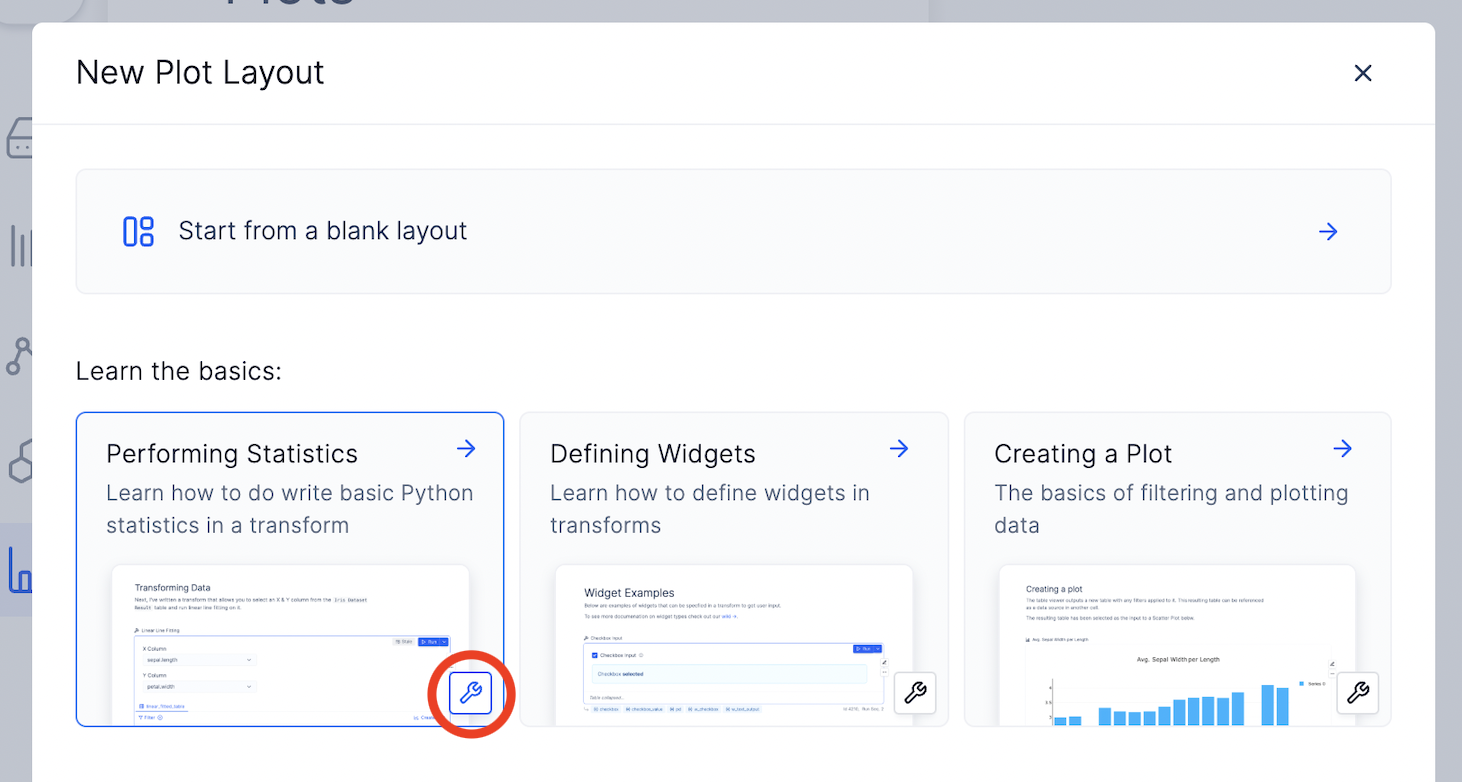

  • Click on the screwdriver icon to access the Template’s settings.

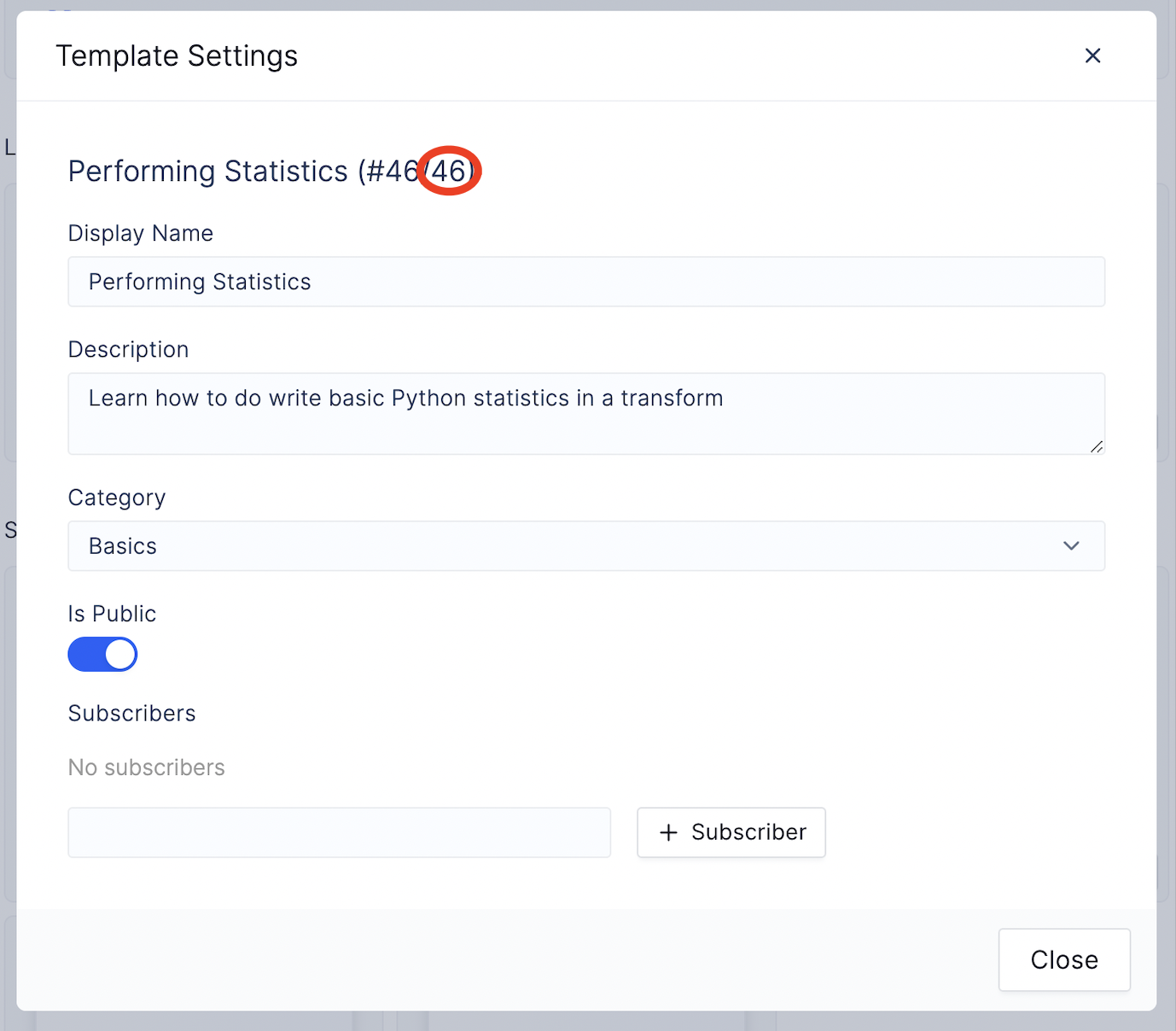

  • See the Plot Template’s ID circled in the screenshot below. The template ID is the number to the right.
  • Create a new notebook from the template

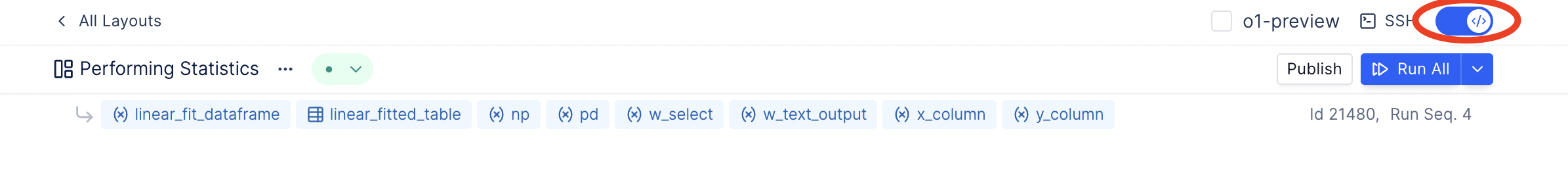

  • Make sure you turn on Dev Mode for the notebook.
  • Navigate to the cell of interest.
  • Copy the ID underneath the cell.
When creating the Plot notebook’s template, provide the widget with key like so:
Inside a code cell of a Plot Template
from lplots.widgets.select import w_select

input_1 = w_select(
    label="First input",
    options=["A", "B", "C"],
    key="input_1"
)

input_2 = w_select(
    label="Second input",
    options=["X", "Y", "Z"],
    key="input_2"
)
Pro-tip: Not all the widgets in your original template have explicitly defined keys. If not, the key value is the order of the widget in that cell.
Example: Let’s say a Python transform cell has three widgets:
  • widget 1: (no key) => Key value is “0”
  • widget 2: (key = “k”) => Key value is “k”
  • widget 3: (no key) => Key value is “1”

​
Step 2: Upload the dataclass to Latch Data

Next, dump the dataclass into a JSON file and upload it to Latch Data.
from latch.types.plots import PlotsArtifactBindings, PlotsArtifactTemplate, PlotsArtifact, Widget

@small_task
def my_task(output_dir: LatchDir) -> LatchFile:
    artifact = PlotsArtifact(
        bindings=PlotsArtifactBindings(
            plot_templates=[
                PlotsArtifactTemplate(
                    template_id="46", ## The Plot template ID
                    widgets=[
                        Widget(
                            transform_id="1234", ## The Python transform ID
                            key="input_1", ## The `key` of the widget that we want to populate
                            value="petal.width" ## Value to populate that widget with
                        )
                    ],
                )
            ]
        )
    )

# Convert the dataclass to a dictionary
artifact_dict = artifact.asdict()

# Write it to a JSON file
with open("artifact.json", "w") as f:
    json.dump(artifact_dict, f, indent=2)

 # You need to return a file artifact for the workflow
return LatchFile(output_path, f"{output_dir.remote_path}/artifact.json")
